Home Fires Round Stainless Steel (Black) Chimney Flue System - Various Components Available

Home Fires Round Stainless Steel Chimney Flue System - Double-Walled Insulated & Single-Walled Stainless Steel Flue Pipes, Appliance Adapters, Bends and T-Pieces, Endcaps, Escutcheon/ Ceiling Plates, High-Wind Cowls, Storm Collars and Support Brackets.

Product Overview

The Home Fires Double-Walled Insulated Stainless Steel Chimney Flue System is a premium, high-performance venting solution designed for residential and light commercial use. Engineered for reliability, safety, and durability, this system is suitable for all negative-pressure applications with oil, pellet, wood, coal, gas stoves, fireplace inserts, furnaces, boilers, and masonry fireplaces.

With a maximum continuous flue-gas temperature rating of 600°C, the system delivers excellent thermal performance, corrosion resistance, and condensate management. It is not suitable for positive-pressure or forced-draft appliances.

Classification: T600-N1-D-Vm-L50050-G50 and T600-N1-D-Vm-L20050-G50

Manufactured from 304 grade stainless steel and painted with black temperature resistant Forrest paint.

Key Features & Benefits

• Double-Walled Insulated Construction: Inner & Outer 0.5mm thick 304 stainless steel with 25mm Superwool Plus insulation (128kg/m³)
• Single-Walled Options: Black powder-coated 304 stainless steel
• Soot Fire Resistance: G50 (50mm clearance to combustibles for insulated pipes)
• Working Temperature: ≤ 600°C
• Working Pressure: Negative pressure / natural draft up to 40Pa
• Continuous TIG welded seams for maximum strength and leak-free performance
• Eco-friendly, high-performance Superwool insulation (non-combustible, resistant to 1260°C)

System Components

The Home Fires Chimney System includes the following high-quality components (please select from the list below as required for your installation):

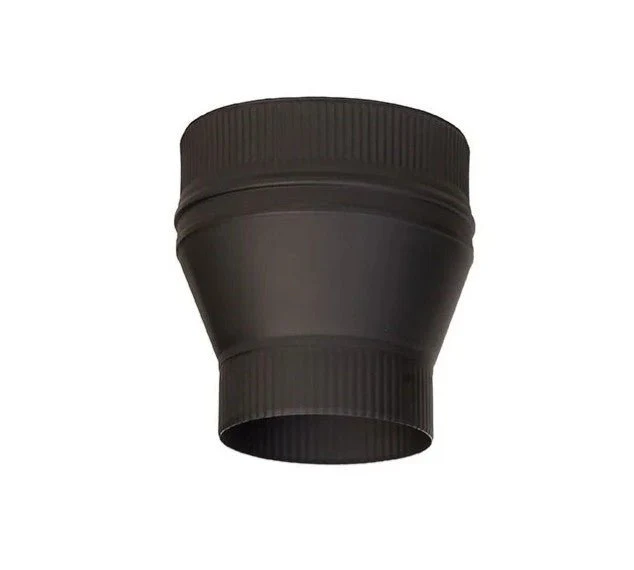

• Appliance Adaptors

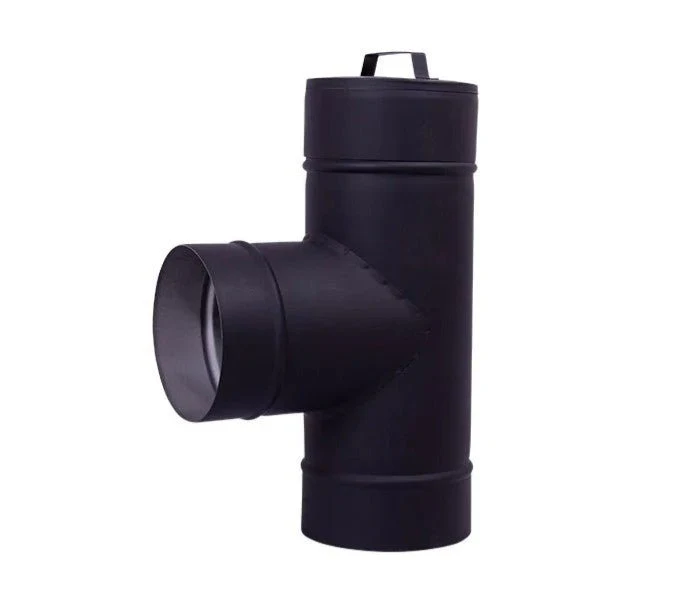

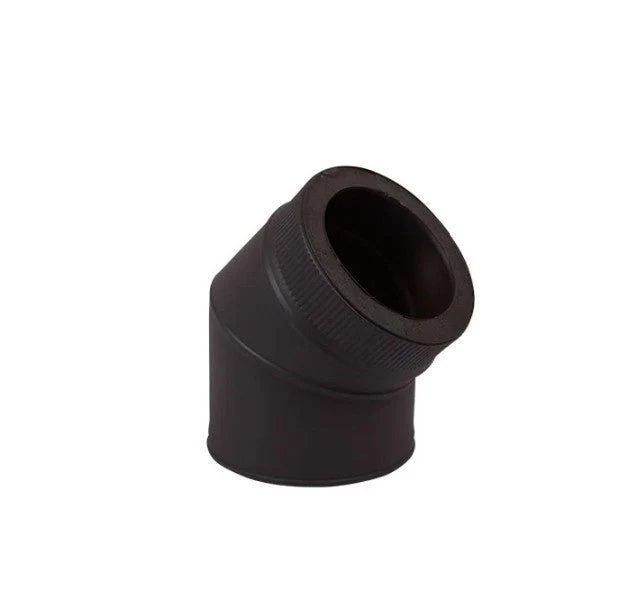

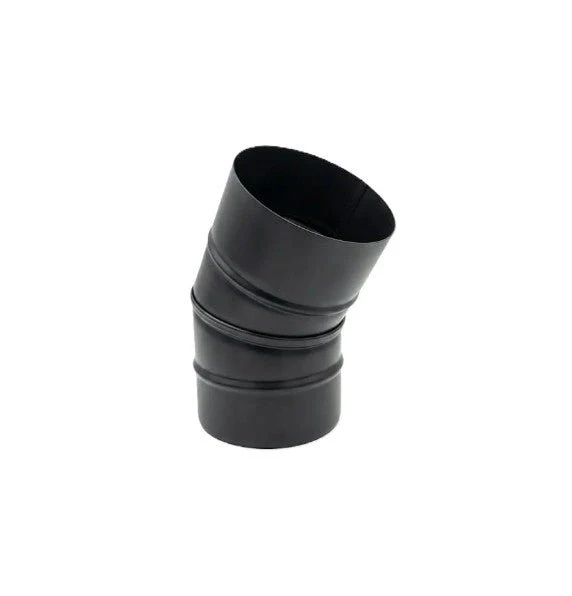

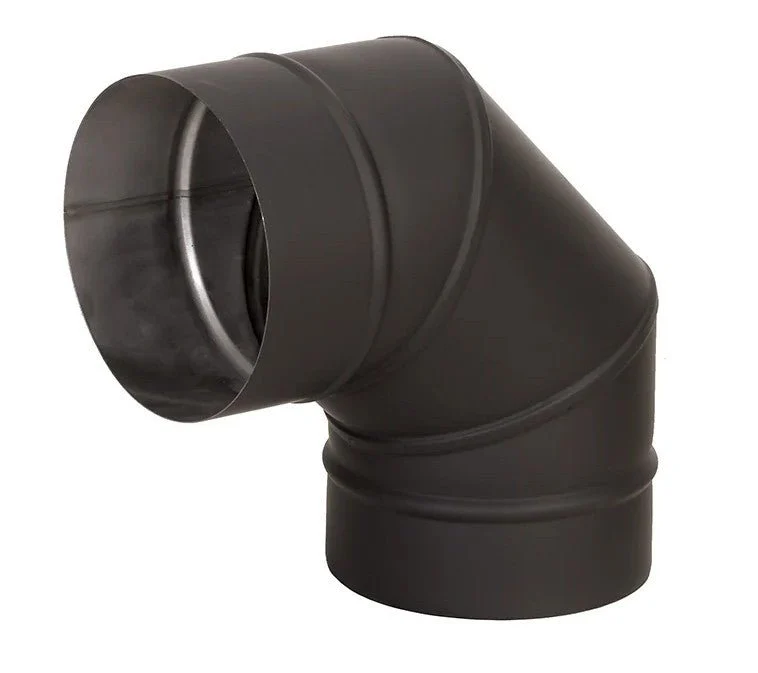

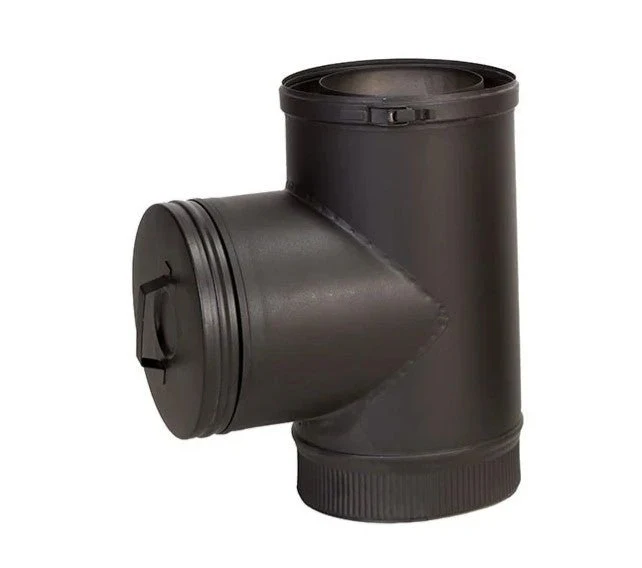

• Bends and T-Pieces (30°, 45° & 90°)

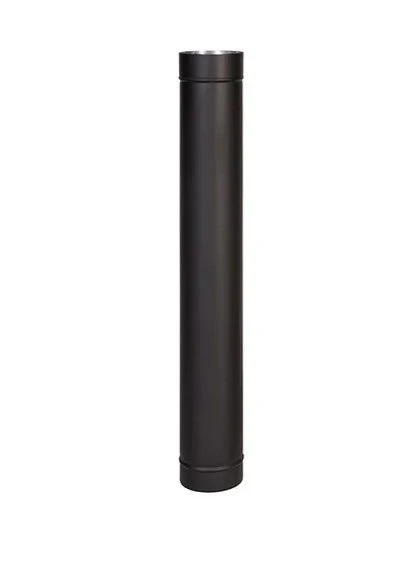

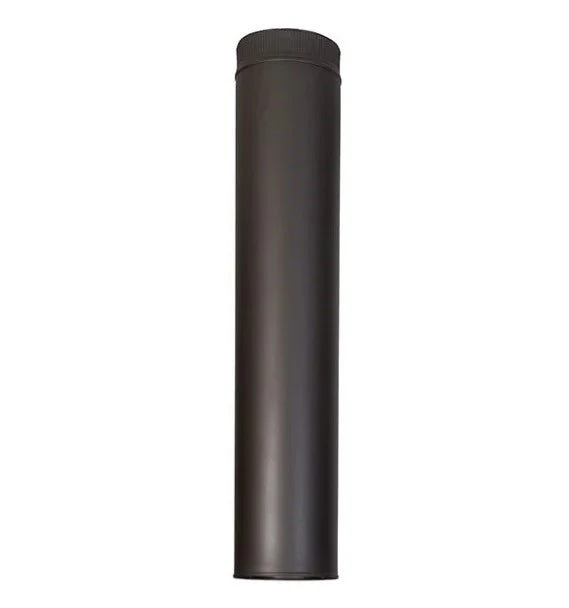

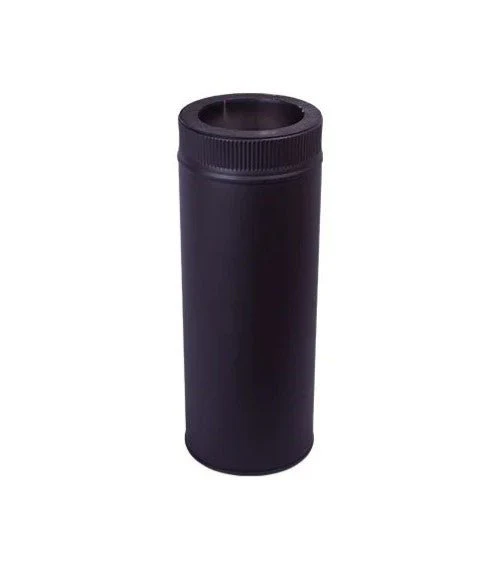

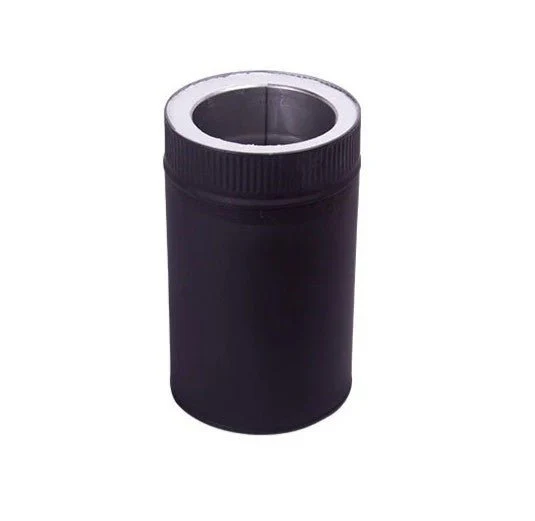

• Single Wall and Double Wall Insulated Pipes

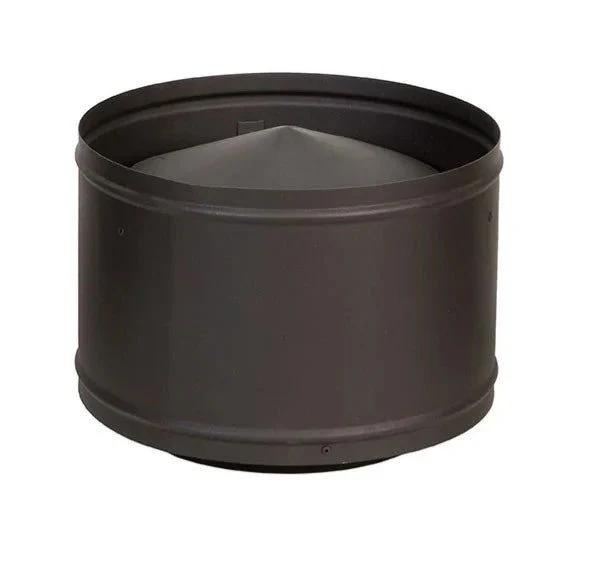

• Endcaps

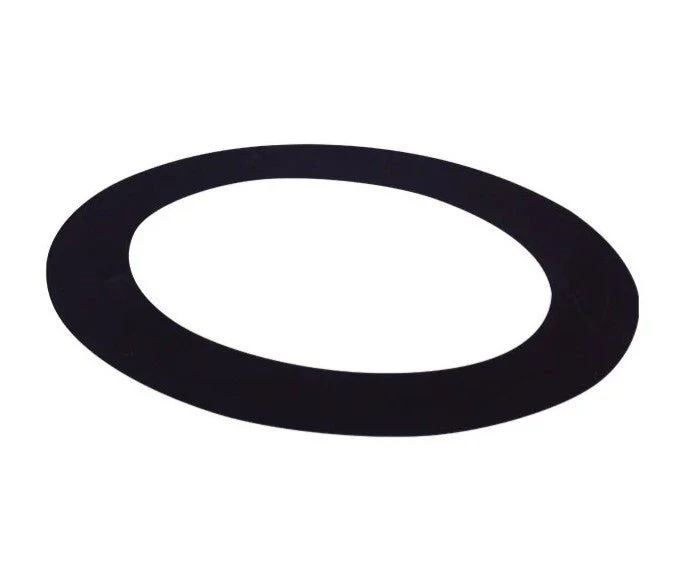

• Escutcheon / Ceiling Plates

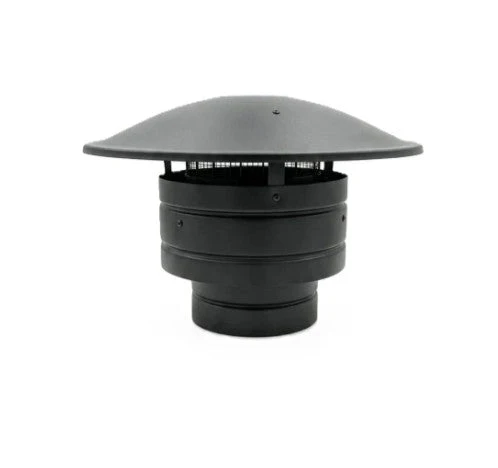

• High-wind Cowls

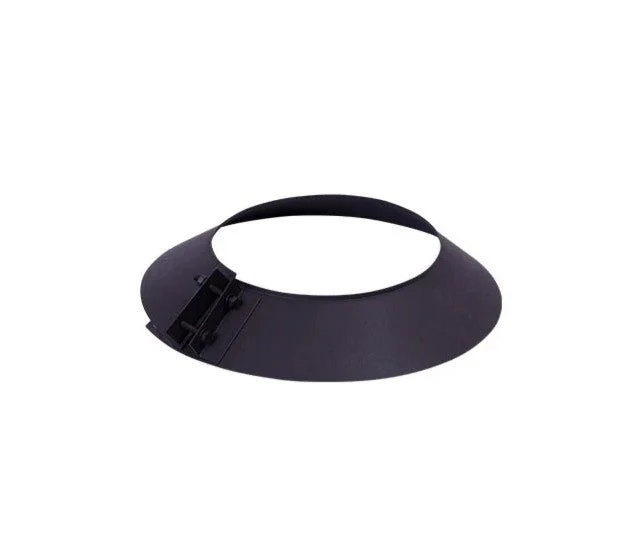

• Storm Collars

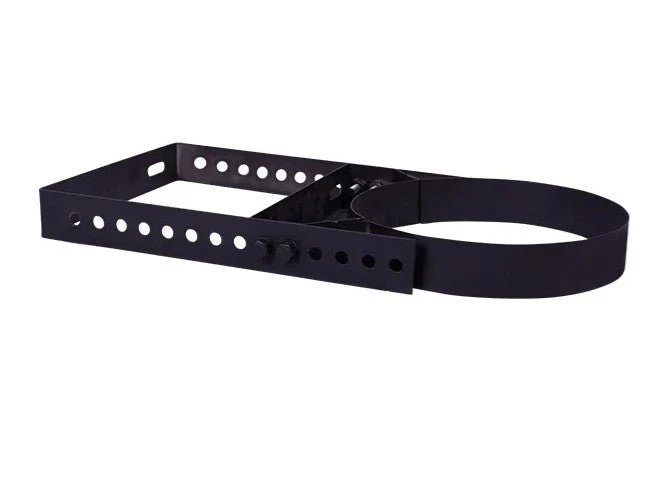

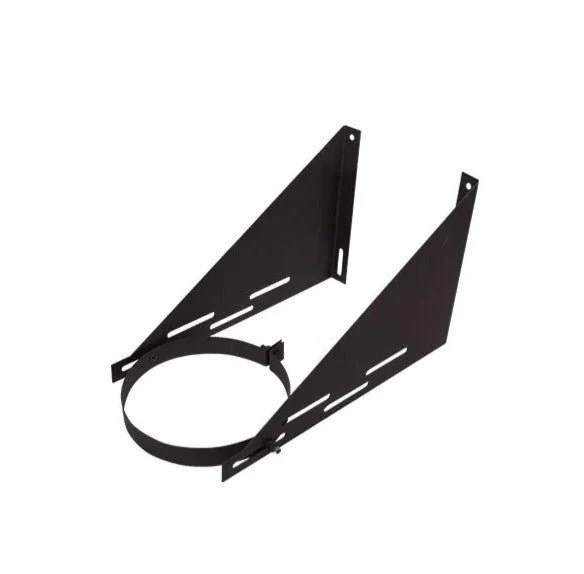

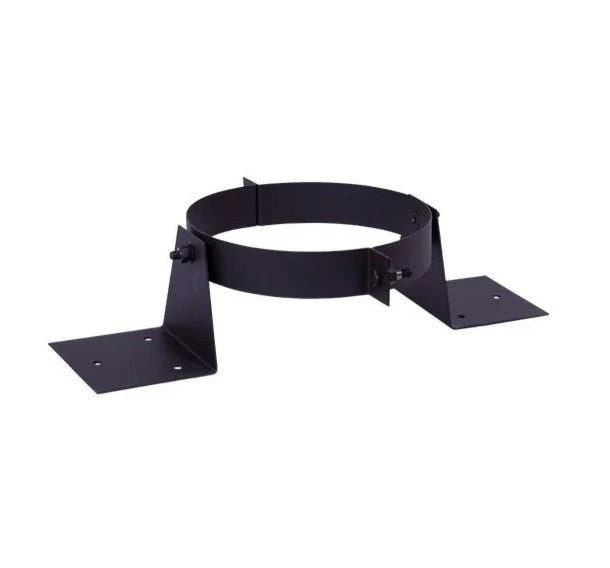

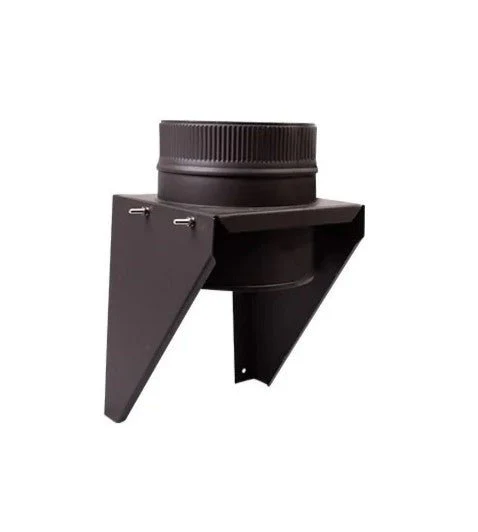

• Support Brackets

Available Diameters

Double-Walled Insulated

• 125mm / 185mm
• 150mm / 210mm
• 200mm / 260mm

Single-Walled Uninsulated

• 125mm
• 150mm
• 200mm

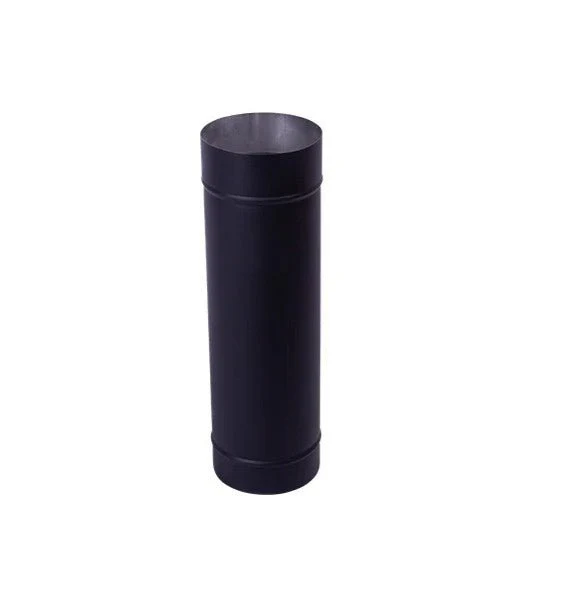

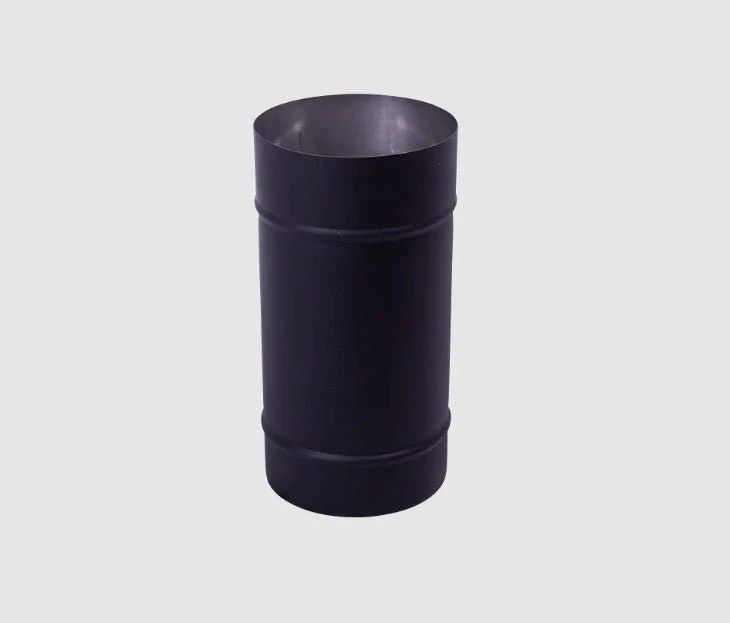

Straight Pipe Lengths

• 300mm
• 500mm
• 1000mm

Installation Guidelines

• Always begin assembly at the appliance connector/spigot (male end into spigot).
• Maintain minimum clearances: 50mm (double-walled) and 300mm (single-walled) to combustible materials.
• Minimum vertical rise of 600mm recommended before any offset.
• Support every 2 metres with lateral brackets.
• All outdoor/exposed sections must use double-walled insulated pipes.
• Professional installation by a qualified chimney specialist is strongly recommended.

Chimney Maintenance

Regular maintenance is essential for safety and longevity, especially with wood-burning appliances. Inspect annually, clean creosote/soot build-up when it reaches 6mm, and always use non-scratching brushes. Thorough cleaning is required within 48 hours after burning coal or anthracite at the end of the season.

In Case of Chimney Fire: Close all dampers/air inlets, seal the fireplace opening, alert occupants, and contact emergency services immediately.

Why Choose Home Fires?

• Manufactured to strict international standards
• Proven field performance and durability
• Versatile solution for most domestic heating appliances
• Comprehensive range of components for complete, safe installations

Home Fires – Engineered for Safety, Built to Last.
